Type:Multifunction Network Tester
1.Support all PCI slots. 2.High recognition rate, automatic identification of power supply module. 3.Support motherboards of major brand, including for Asus / Gigabyte / MSI, etc. 4.Motherboard supporting PCI-E mini PCI-E LPC. 5.Easy to use and simple. 6.Can detect multi-channel, multi-LED indicator, can display power, motherboard, PCU, memory, graphics card, hard disk status.
Colour: GRENN Interface: PCI-E, LPC Support brands: for Asus / Gigabyte / MSI / ASRock, etc. Size: 102 63 3mm / 4.0 2.5 0.1in Weight: approx. 27g

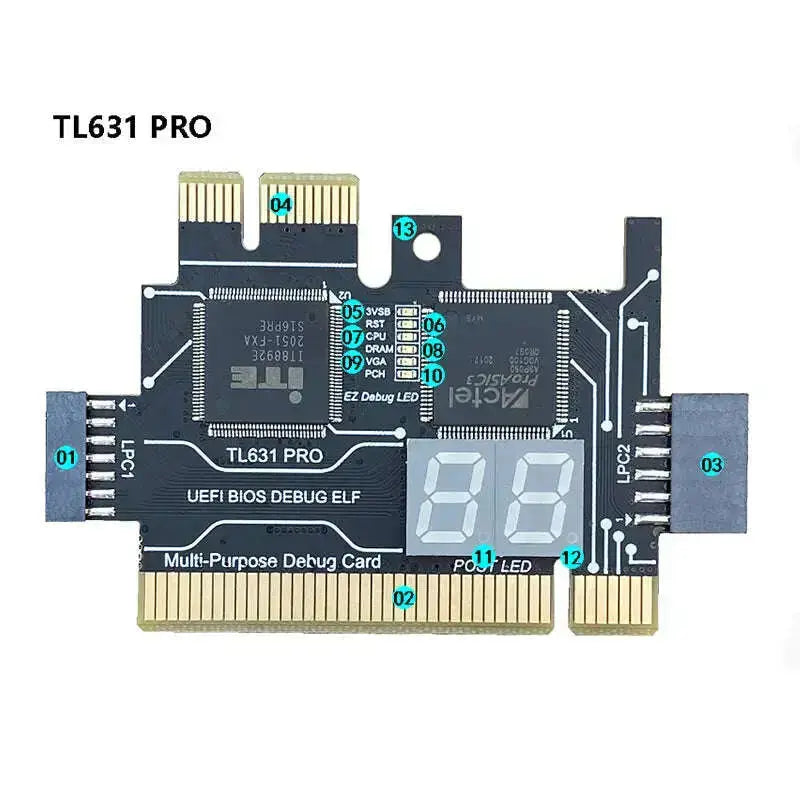

1.LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module (Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, ASUS notebook DEBUG-CON. EC-DEBUG). 2.PCI high-speed channel = upport all PCI slots. 3.LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, ASUS COM-DEBUG. ASRock UART1, MSI JDP, Supermicro SPl. 4.PCIE X1 high-speed channel = upport Gigabyte without PCI motherboard (other brands do not support). 5.3VSB power indicator, to detect whether the power is normal. 6.RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted) 7.CPU indicator light, to detect whether the CPU module is normal. 8.DRAM memory indicator, to detect whether the memory module is normal. 9.VGA graphics indicator light, to detect whether the graphics card module is normal. 10.PCH south bridge indicator light, to detect whether the south bridge module is normal. 11.DP decimal point, CLK signal display. 12.DP decimal point, FRAME frame signal display. 13.threading hole
1 * Diagnostic Card
