Specifications
Type:Coolant Temperature Sensor
Style:L
Linear:As Description
Drop Ship:Dropshipping Item
Placement:In Air Filter
Hysteresis:As Description
Resolution:As Description
Sensitivity:As Description
Sensor Type:Holzer
Repeatability:As Description
Measuring Range:As Description
Details
Features:

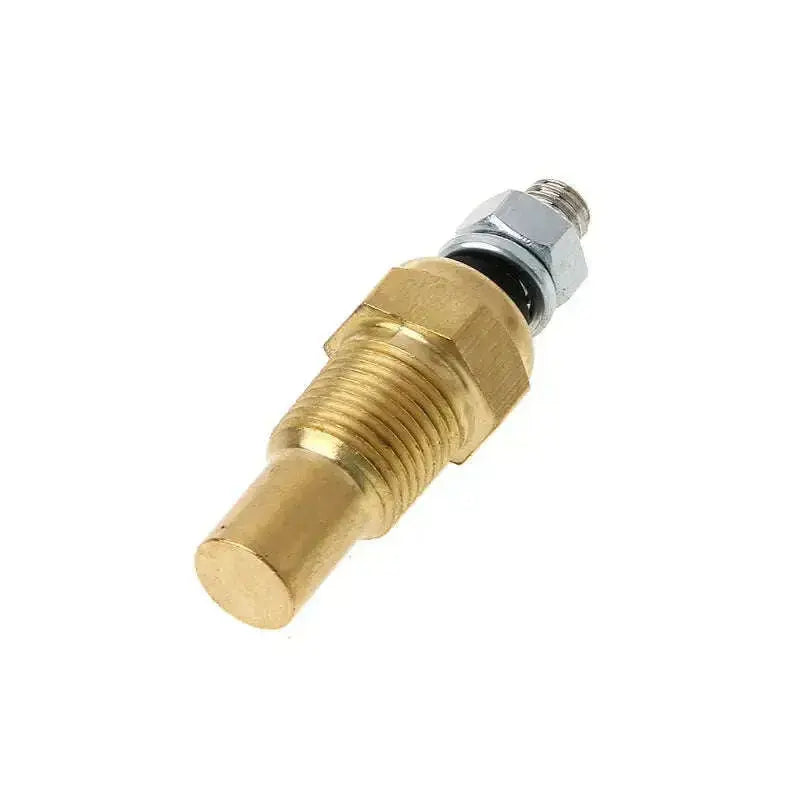

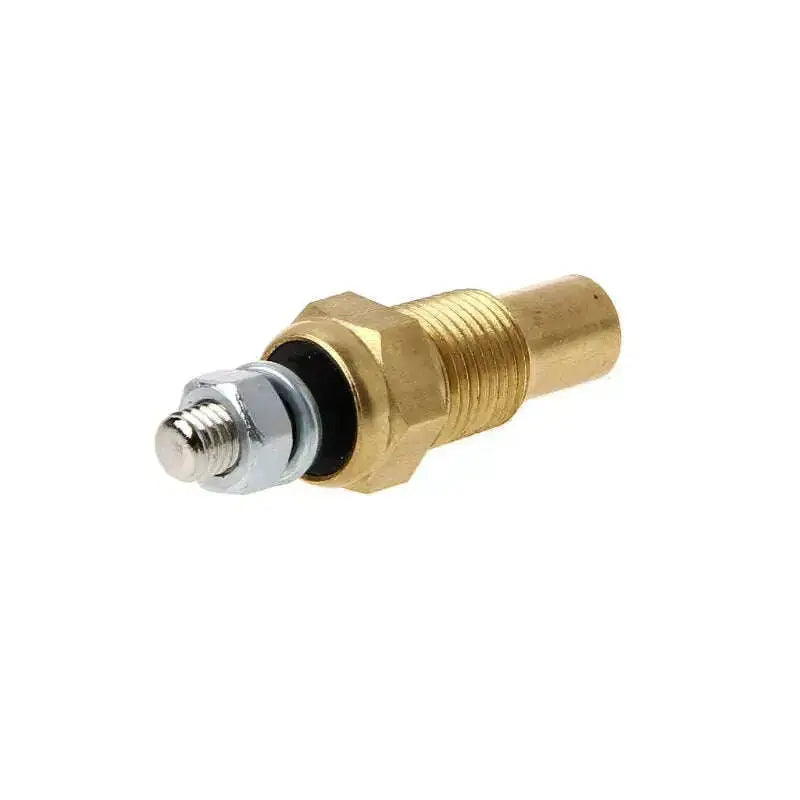

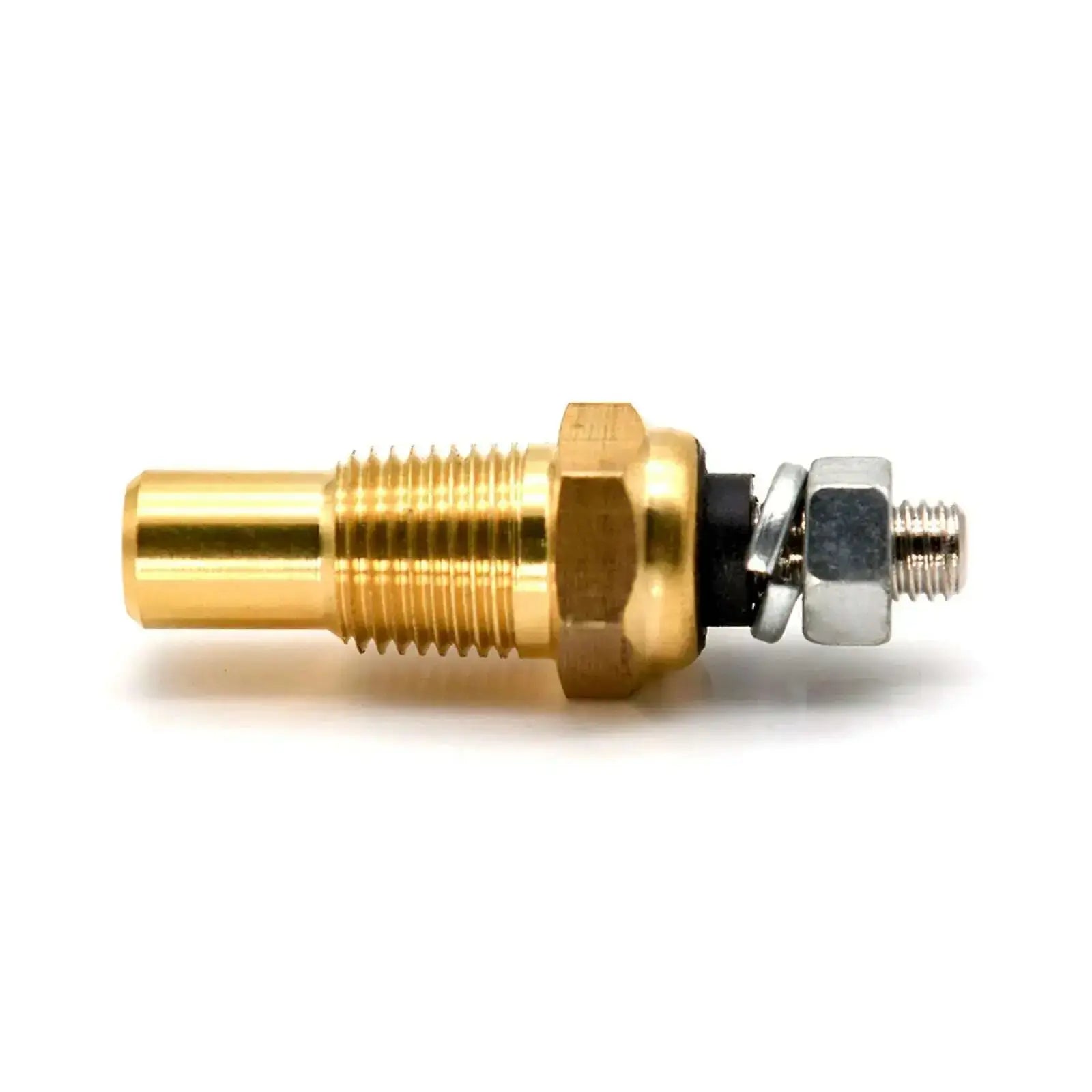

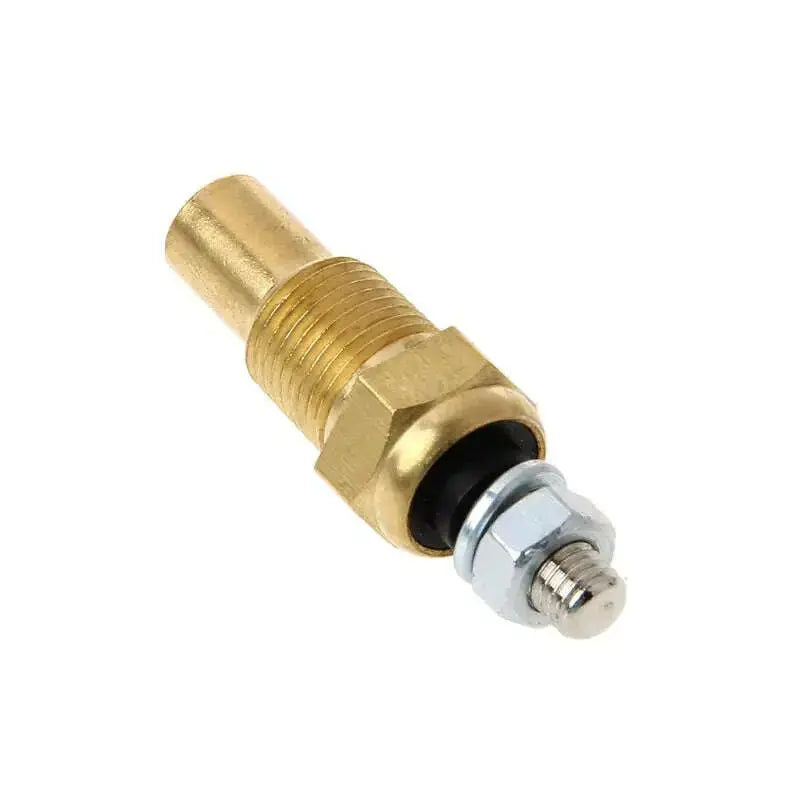

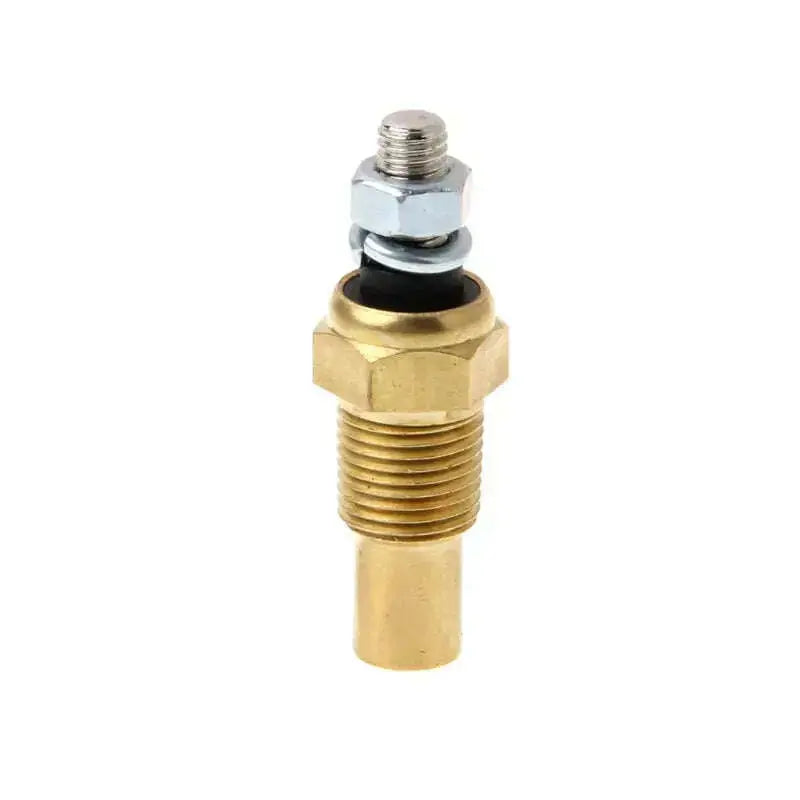

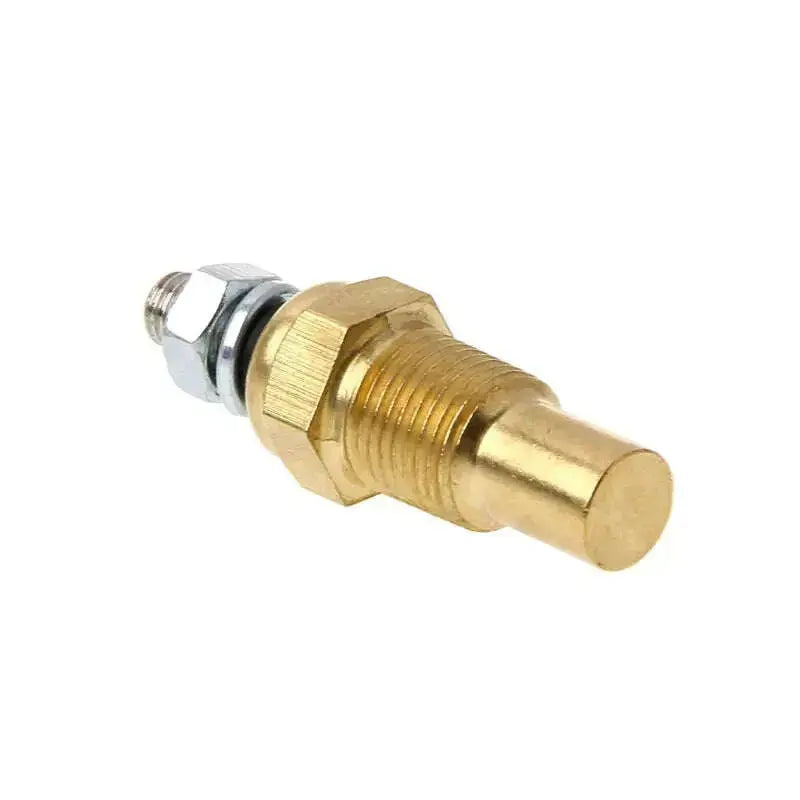

A direct replacement for faulty or damaged after market oil/water temperature gauge sensors. A Universal 1/8" NPT oil / water temp sensor, temperature ranges from 0-150c / 0-300f This is a one wire sensor, one for the signal to the gauge the sensor is earthed through the thread when screwed into the engine/sandwich plate. Single connection sensor (brass outer case is earthed) Temperature reading range 0 - 150 Celsius 1/8th NPT Male Threads Range 0~150c ( 0-300f ) Universal Fit on all Imported and Domestic Cars
Temperature TO Resistance:
37.8℃ — 450 ±45 Ohm 104.4℃ — 46.6 ±2.3 Ohm 100℉ — 450.0 ±45.0 Ohm 150℉ — 158.20 ±15.82 Ohm 200℉ — 64.30 ±6.43 Ohm 250℉ — 29.25 ±2.93 Ohm 300℉ — 14.96 ±2.25 Ohm
