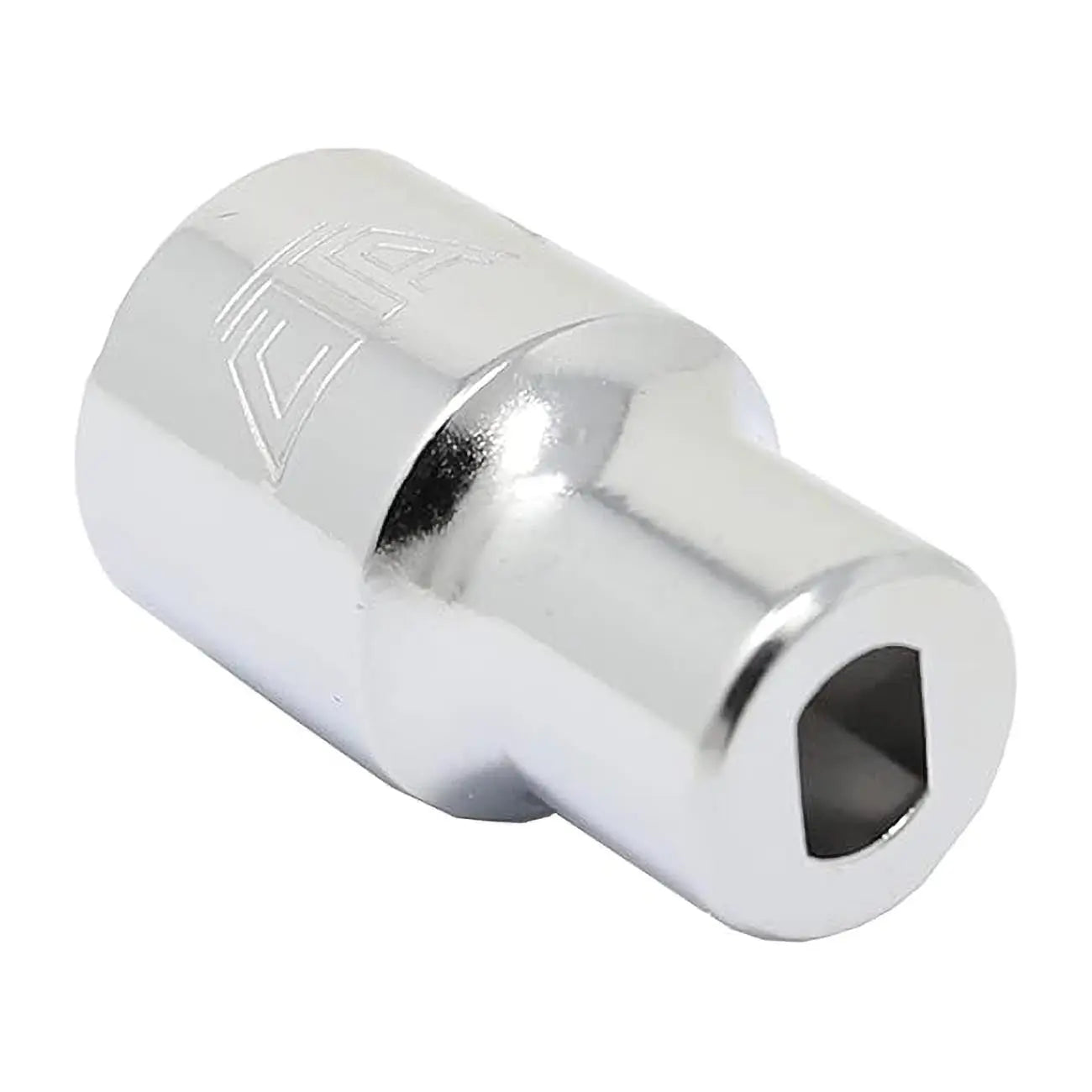

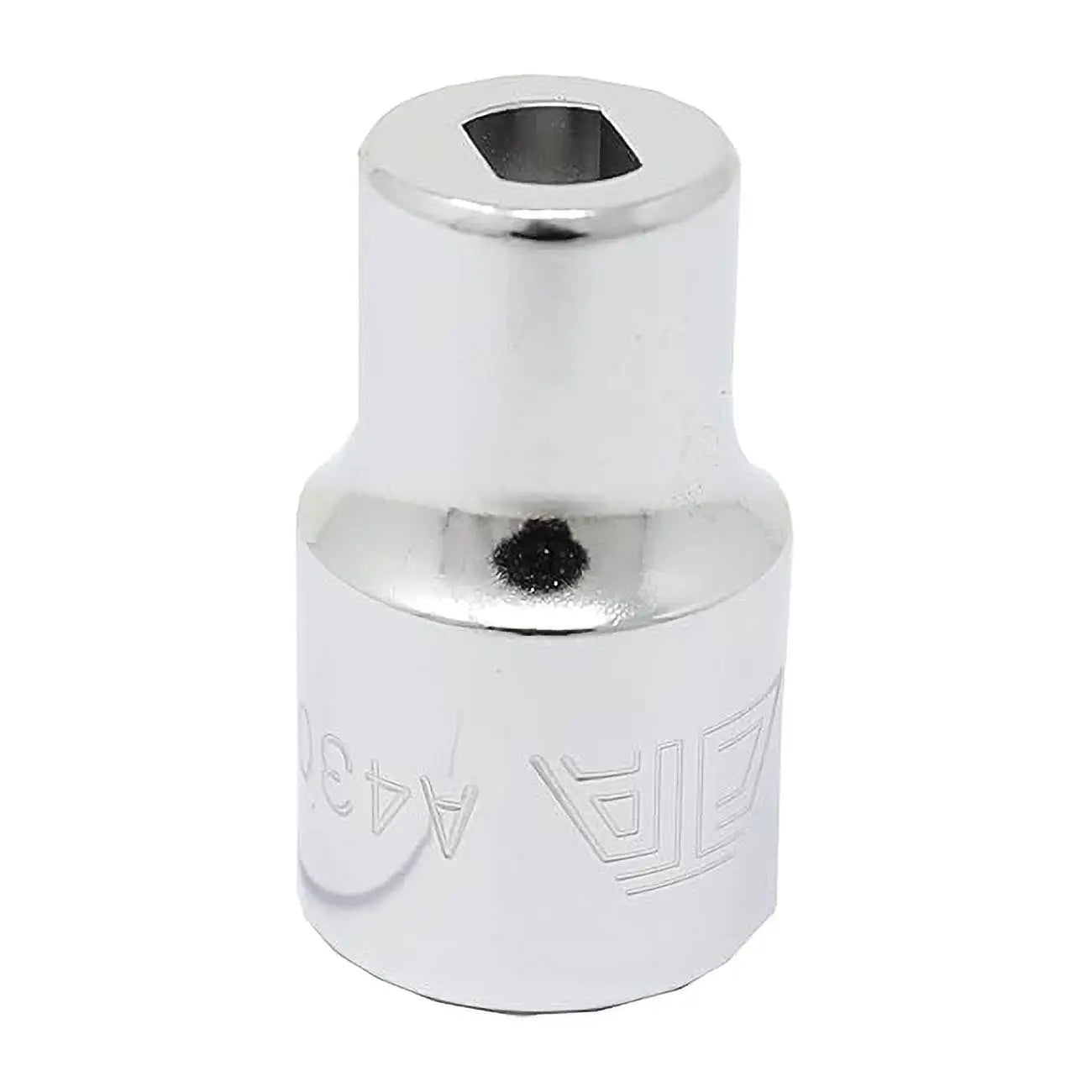

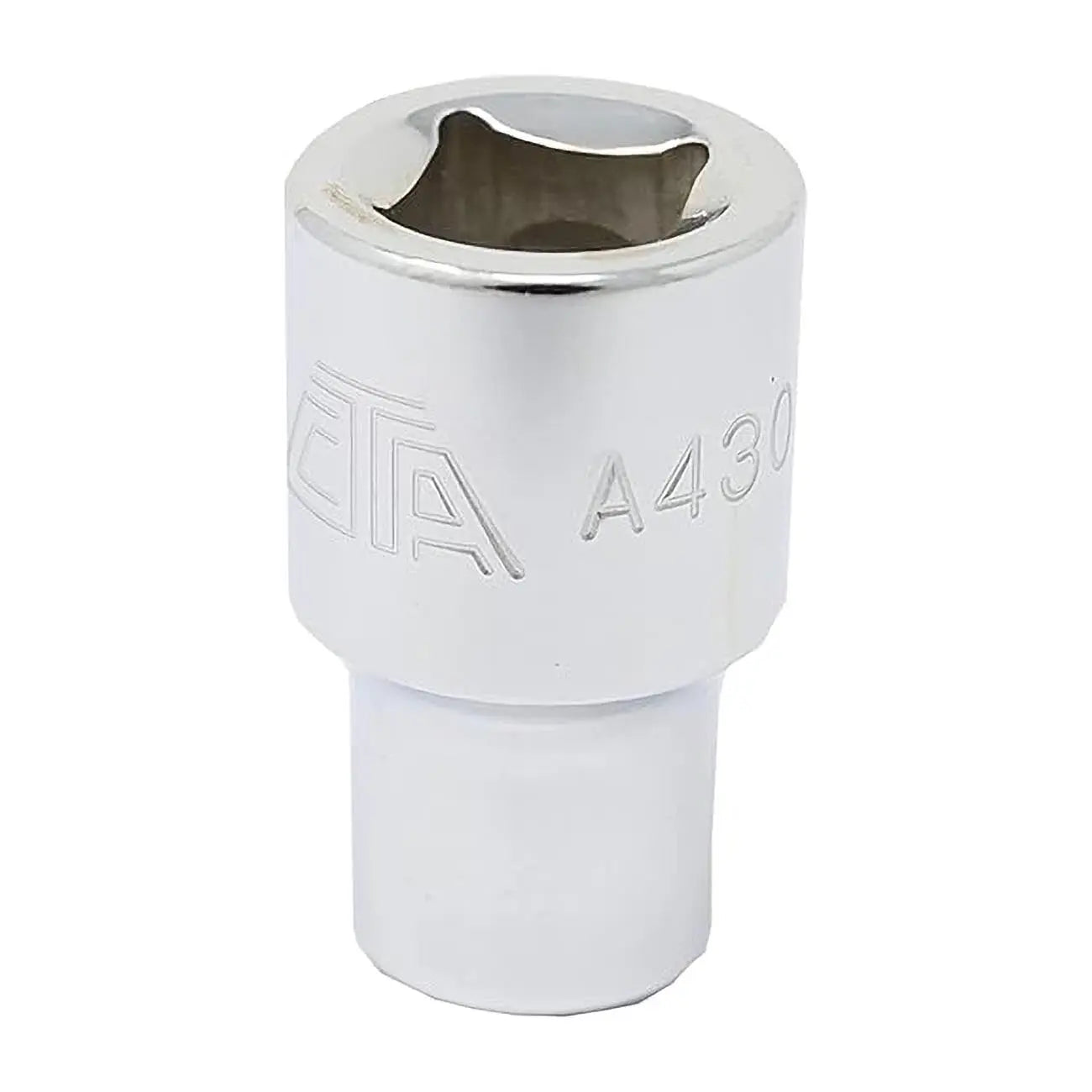

CTA Ford/GM Shock Absorber Socket

Socket is primarily designed for GM X and J body applications, but will also services specific Ford units
&quote;Double-D&quote; socket holds shock piston stem while deep socket is used to remove the nut
Internal dimensions: .33&quote;(8mm) long x .25&quote;(6mm) wide x .3&quote;(7.75mm) deep
3/8&quote; square drive
31.75mm OAL
18.9mm wide at the Drive end of socket
13.8mm wide at &quote;Double-D&quote; end of socket
7.5mm x 5.5mm &quote;Double-D&quote; Size

Aftermarket Applications:

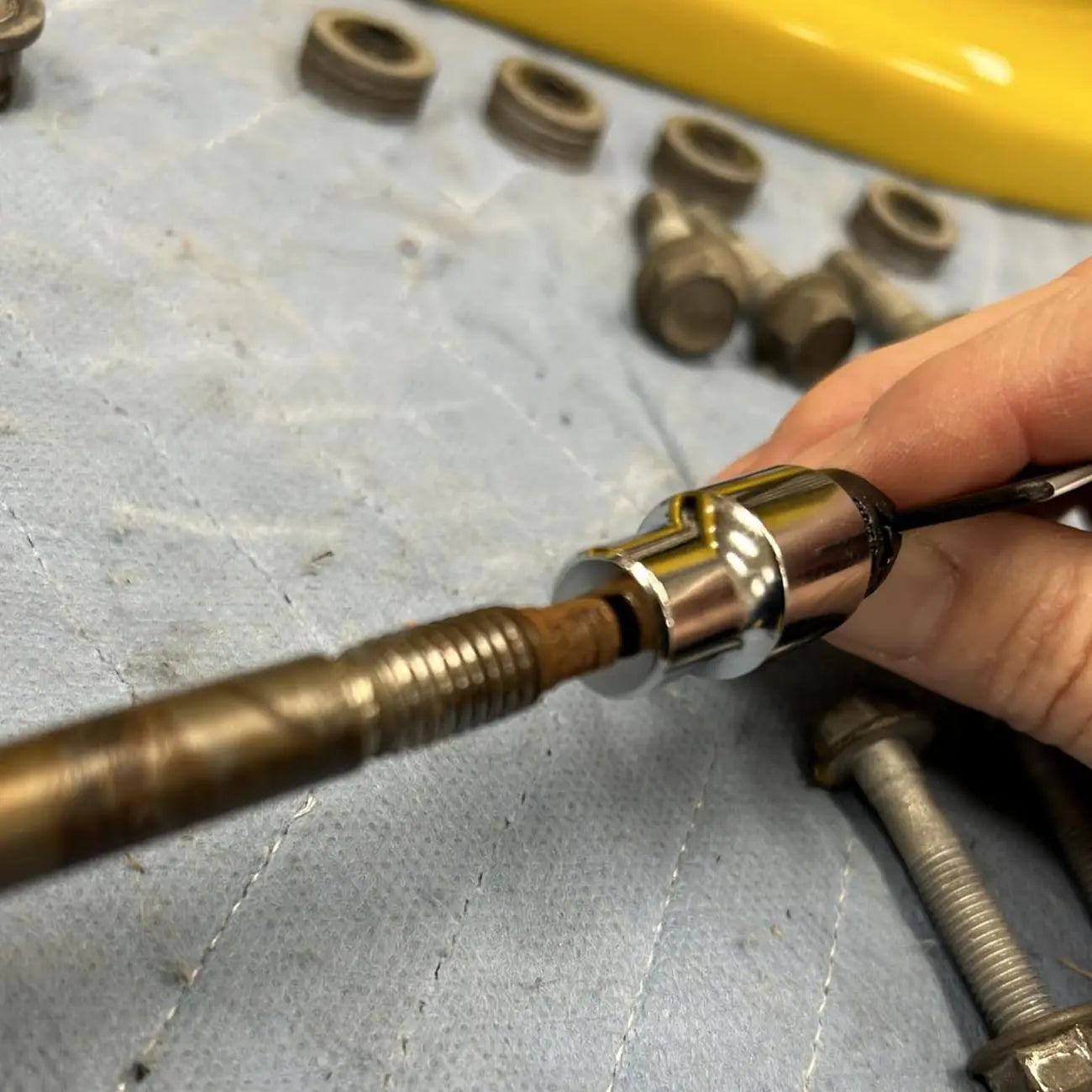

Used for installing turbo studs on:
2011-2020 Ford 3.5L Ecoboost F-150
2015-2020 Ford Expedition/Navigator
2017-2020 Ford Raptor

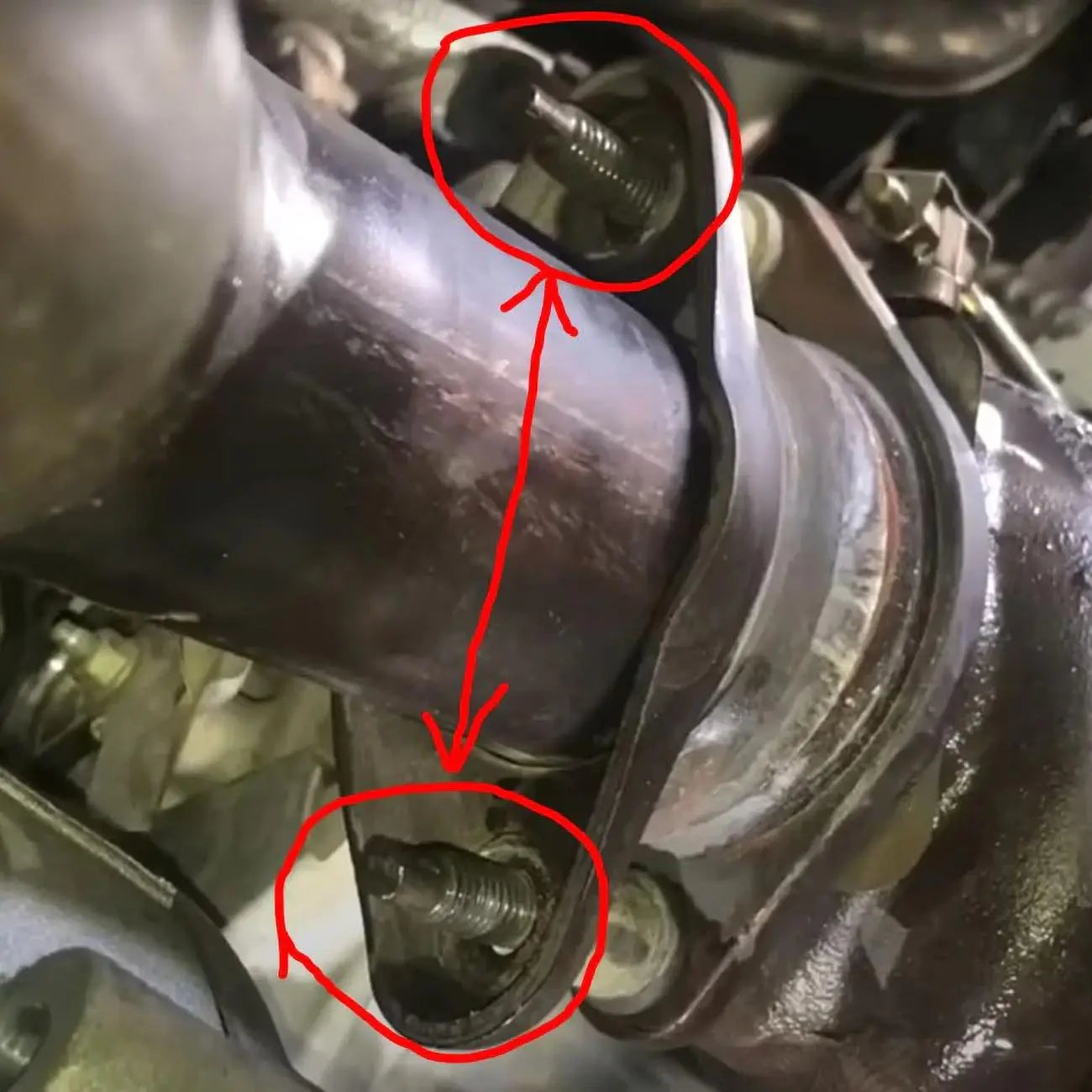

Also used for installing exhaust manifold flange studs on:
2015-2020 Ford 5.0L F-150
