Crux OnStar Radio Replacement interface w/ SWC Retention, & Double Din Dash Kit for Select GM LAN-29 Bit Vehicles 2006 – 2017

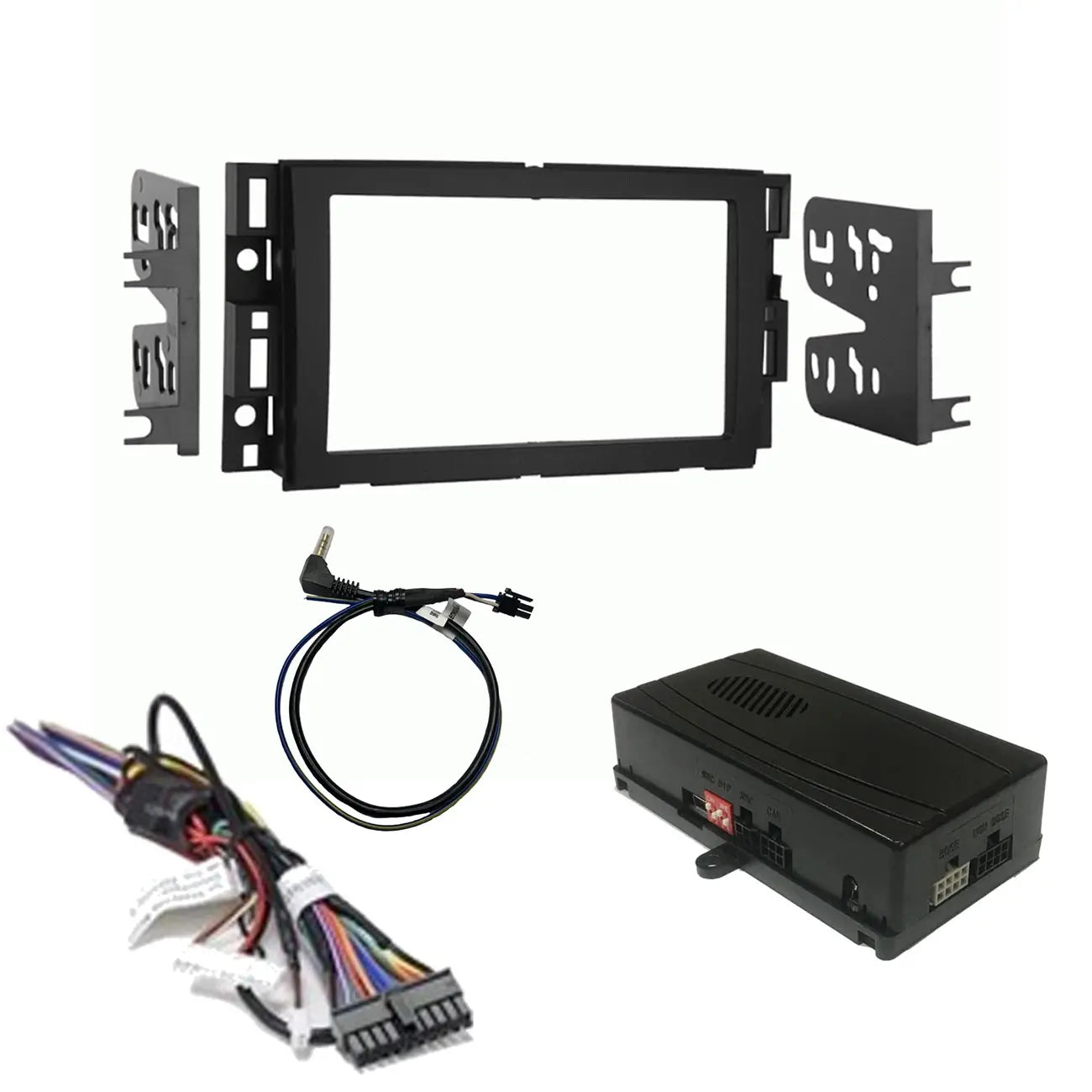

The CRUX DKGM-16 is a complete packaged kit that includes a Double Din Dash Kit, antenna adaptor, & premium Onstar radio replacement interface for Amplified & Non amplified solutions for select General Motors LAN 29-Bit Vehicles. This enhanced interface is also pre-programmed for the retention of steering wheel controls.

• Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls.
• iPhone Voice Recognition (VR) feature from SWC on Kenwood, Pioneer, Alpine and JVC radios.
• Supports Pick Up/End Call, Pick Up and Toggle between 1st and 2nd Incoming call, AVRCP Track, Seek.
• Supports Bose, non-Bose and Y-91 audio systems.
• Includes Double DIN Radio Replacement Dash Kit
• Provides Factory Rear Seat Entertainment Activation. Requires Cable #CRUX2333A (sold separately).
• Retains factory front and back park assist system.
• Retains chime functions.
• EIA color coded wiring for easy installation.

1. NOT compatible with 2012-Up SUVs/Trucks that are equipped with factory-installed Navigation radios.
2. NOT compatible with Express and Savanna vans that are powered by a diesel engine.
3. Supports Rear Entertainment System with special order harness #CJA2333A (sold separately).
