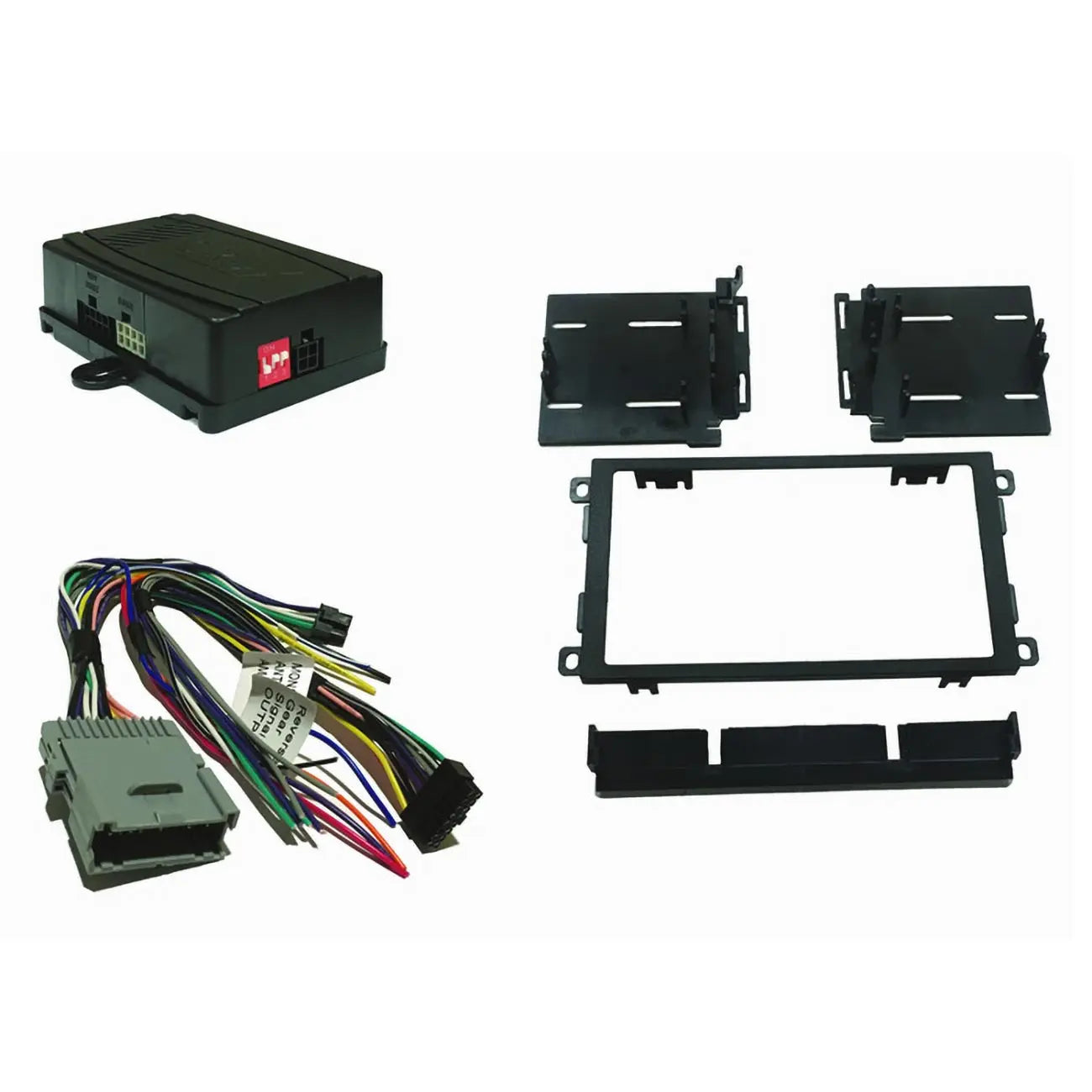

Crux OnStar Radio Replacement interface w/ SWC Retention, video switcher & Double Din Dash Kit for GM Class II Vehicles 2003 - 2013

The CRUX DKGM-15 is a premium interface for select General Motors Class II Vehicles. It facilitates the integration of an after-market radio to fully retain OnStar & other factory features in GM Class II Data bus vehicles for Bose Amplified and Non-Amplified Systems. A double DIN radio replacement dash kit is included in the kit to make the installation quick and easy. The DKGM-15 interface is also pre-programmed for retention of steering wheel controls.

• Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio
• Pre-programmed to retain factory Steering Wheel Controls
• Voice Recognition Command from factory SWC
• Supports Bose, non-Bose and Y-91 audio systems
• A double-DIN radio replacement dash kit is included in the kit
• Retains OnStar & chime functions
• Built-in chime volume adjustment
• EIA color coded wiring for easy installation

1. The Front and Rear fading are not retained on Y-91 Bose System.
2. Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
